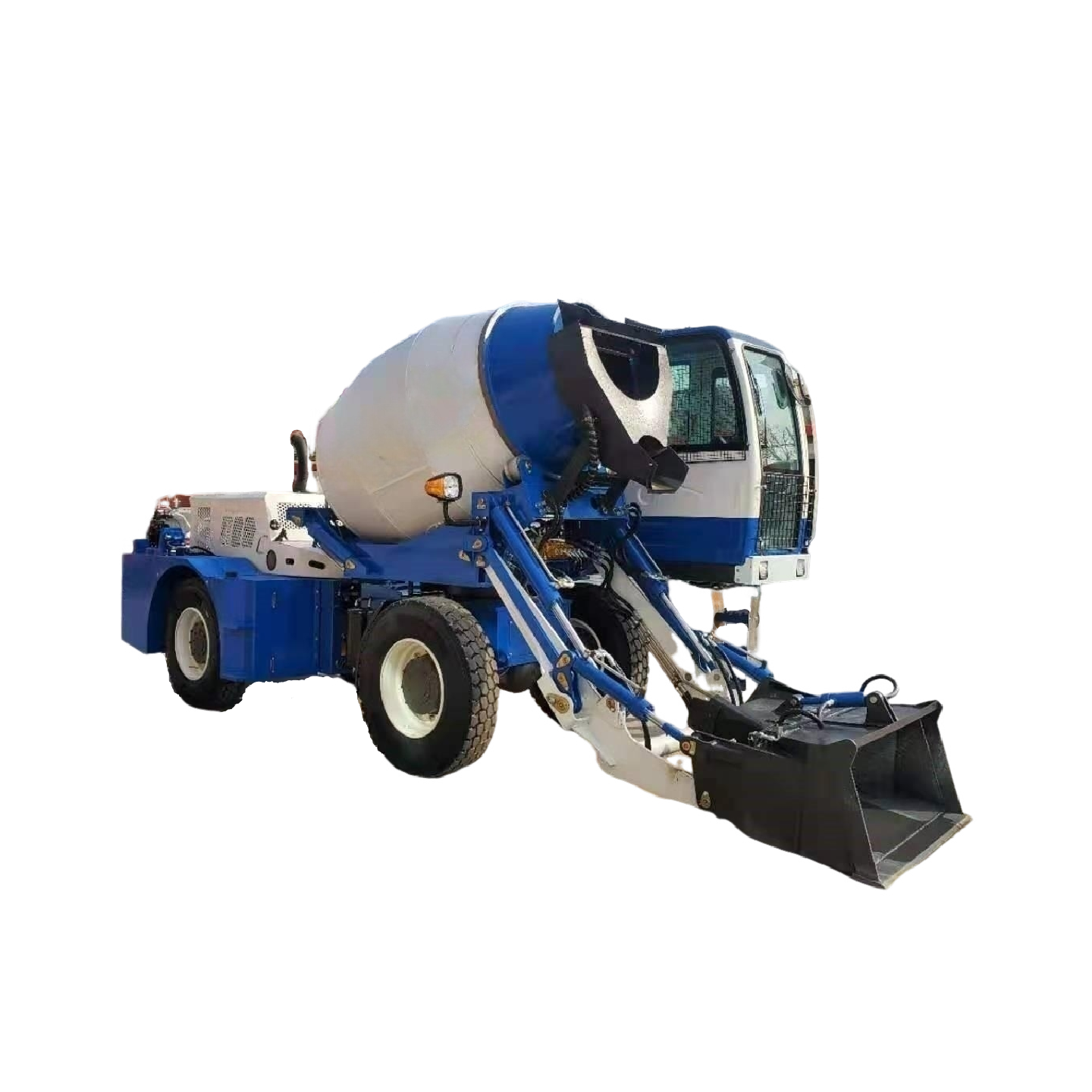

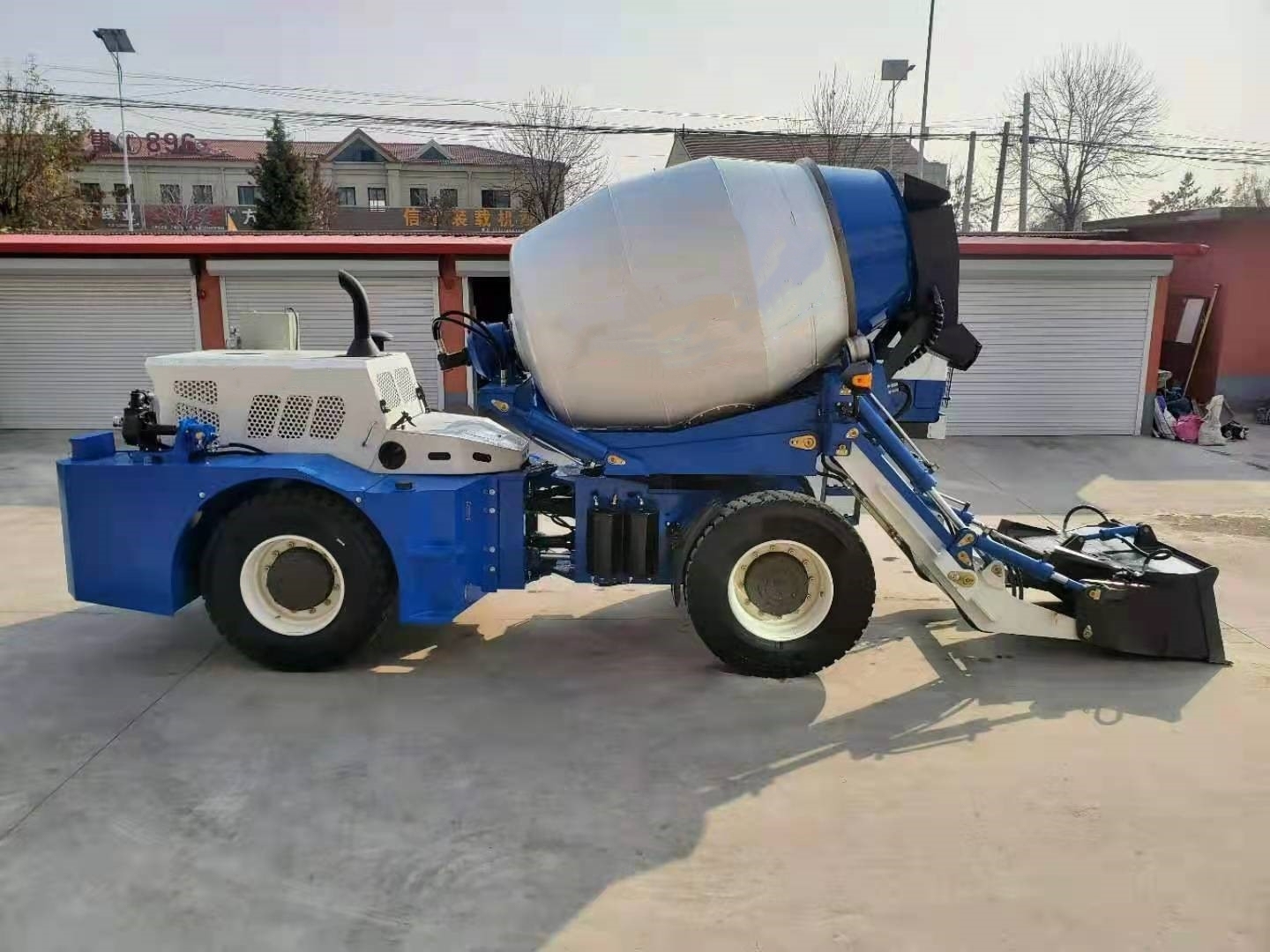

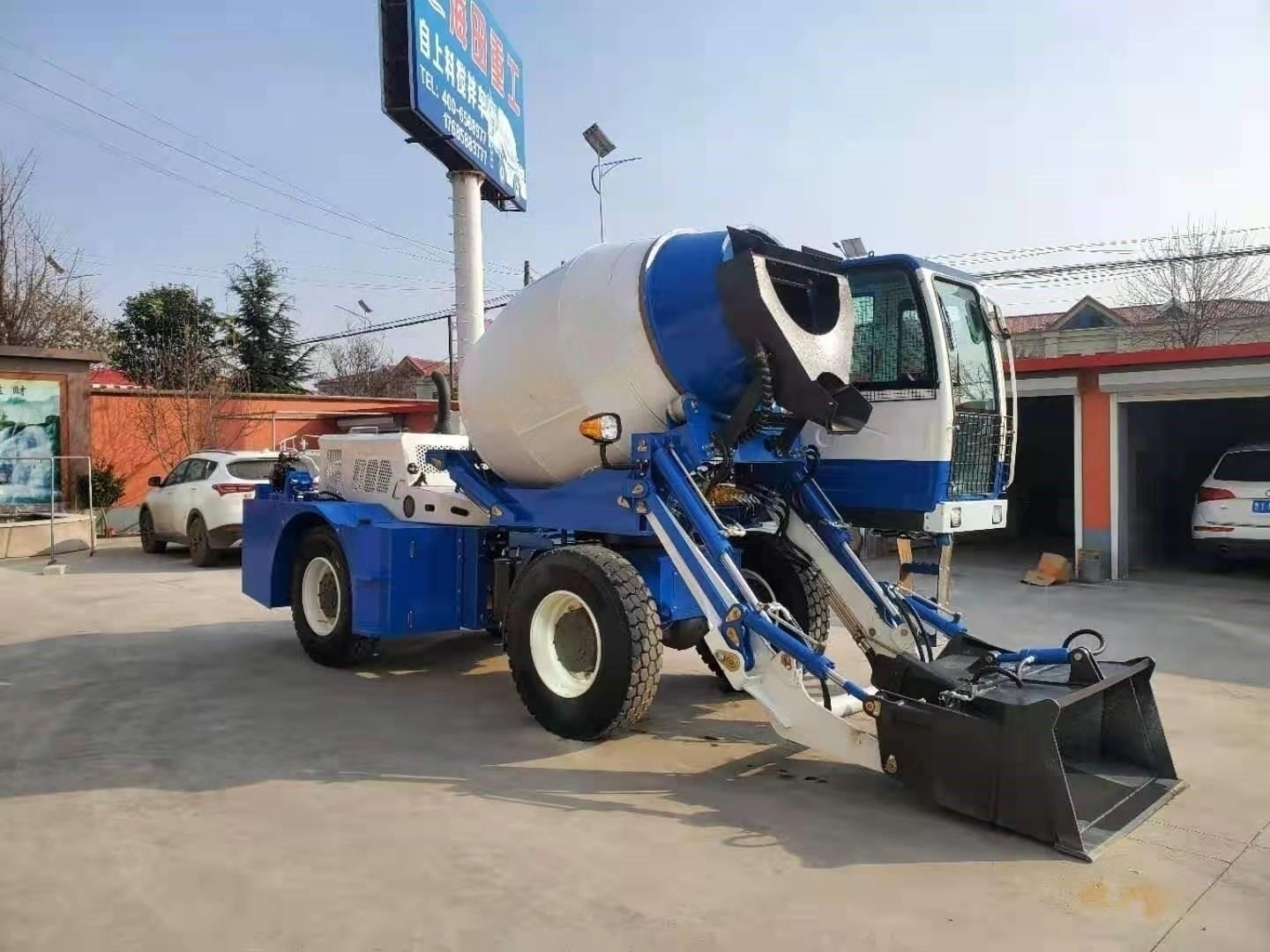

QINGONG 2.6 Cubic meters Self-loading Concrete Mixer Truck
Output per lot: 2.6cubic metres
Drum rotation: the height of the discharge port is 1.8m, the cab and the tank rotate horizontally by 270 ° (90 ° left and 180 ° right), and the tank can be lifted and lowered
CAPACITY: Up to 4.5 batches per hour, 12.5 cubic hours
Engine: Yuchai power 4102 supercharged engine, diesel, water-cooled, 4-cylinder, 2200 rpm, rated power 78kw
Drive mode: 4-wheel drive
CLIMB: 40 degrees
SPEED: dual altitude, low speed 0-25 km/h, high speed 0-40km/h
Driver's seat: widened excavator cab, front window can be opened, anti roll, anti falling object type, decompression buffer seat
Hydraulic system: closed oil inlet, cycloidal hydraulic motor and two gear pumps
JOYSTICK: Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank
Bucket: 0.5 cubic, hydraulic gate
Clay Groove: equipped with two 150CM Removable Chute to increase the length of discharge
Water Supply System: self-priming driven pump, 24V self-timing Centrifugal pump, 24V car wash machine
BRAKE: Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper
Steering: Hydraulic articulated steering
TIRE: 12R22.5 steel wire high pressure vacuum tire
Power System: 24V
Fuel tank: 130 l diesel fuel tank,
Hydraulic fuel tank:130L
Water tank: 1 * 700 L
Weight: 7500 kg
Length, width, height: 6900mm * 2600mm * 3300mm
wheelbase / Wheelbase：2903mm / 1800mm
Turning radius: 2,900 mm
Other: Q345 manganese steel frame, luxury cab, driving impact, cement bucket, air conditioning
