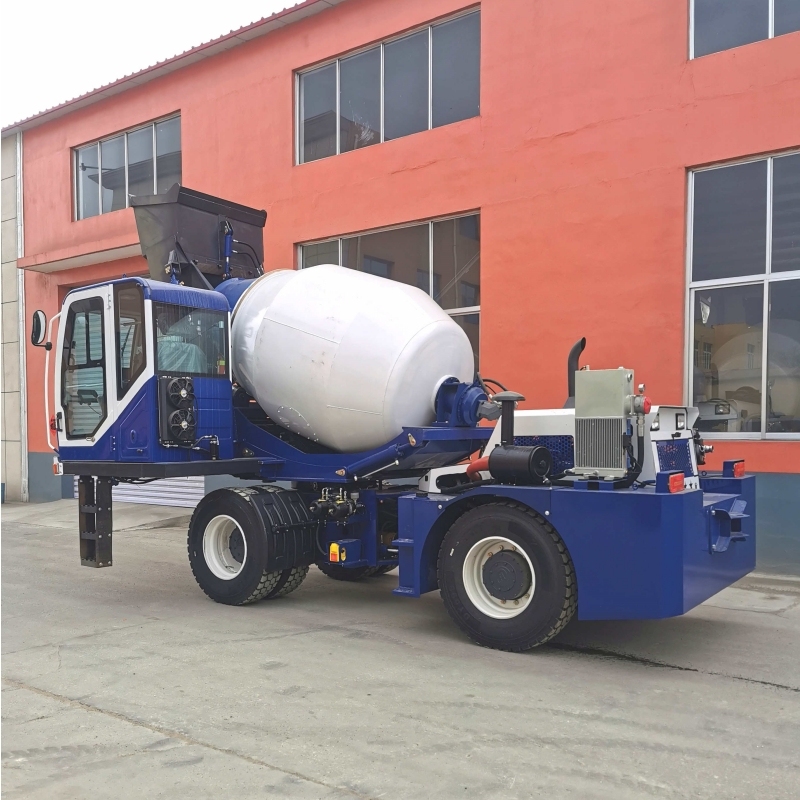

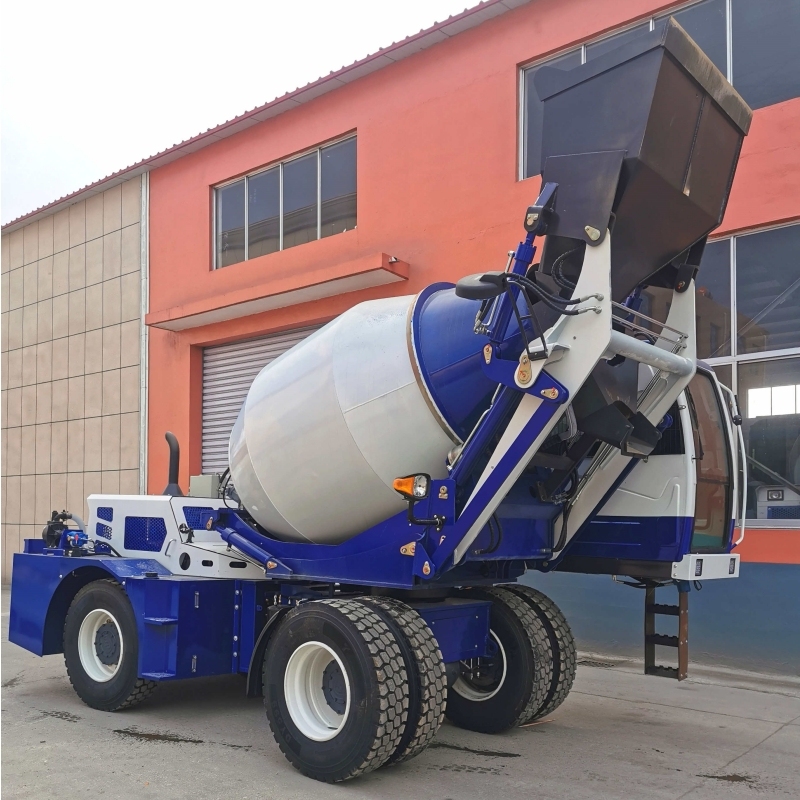

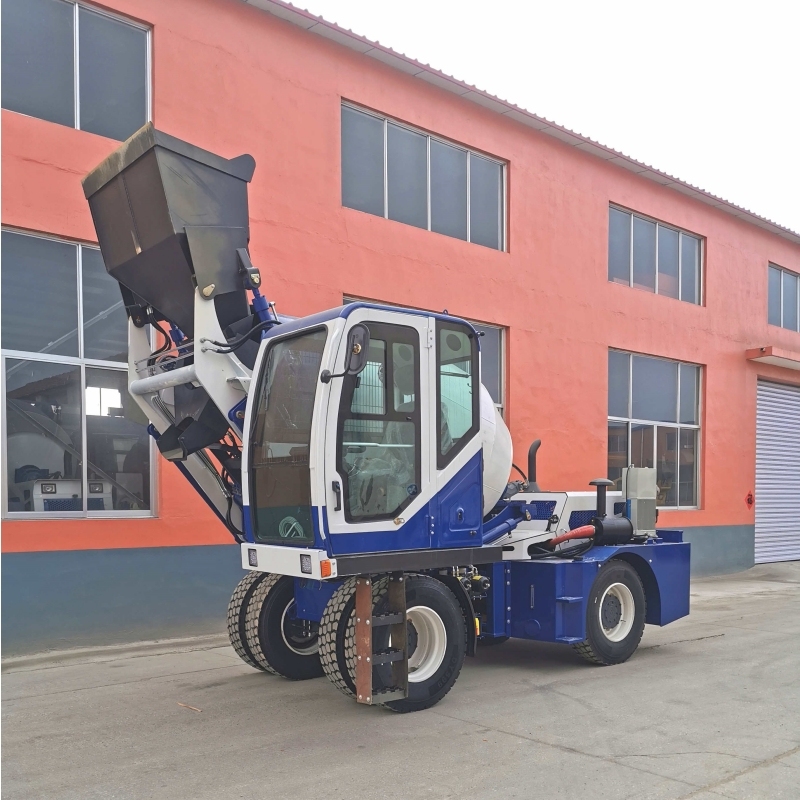

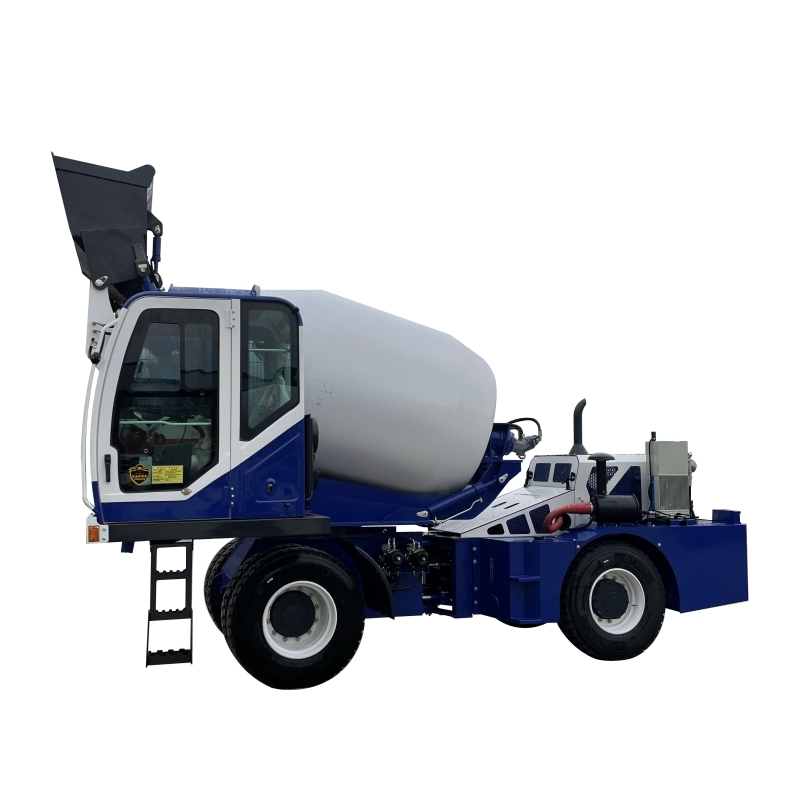

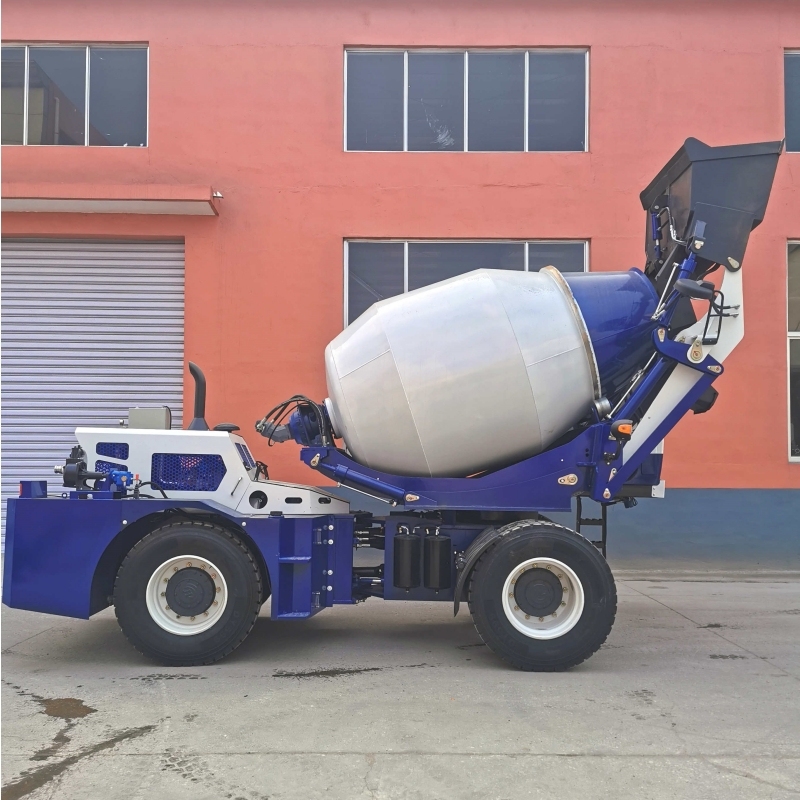

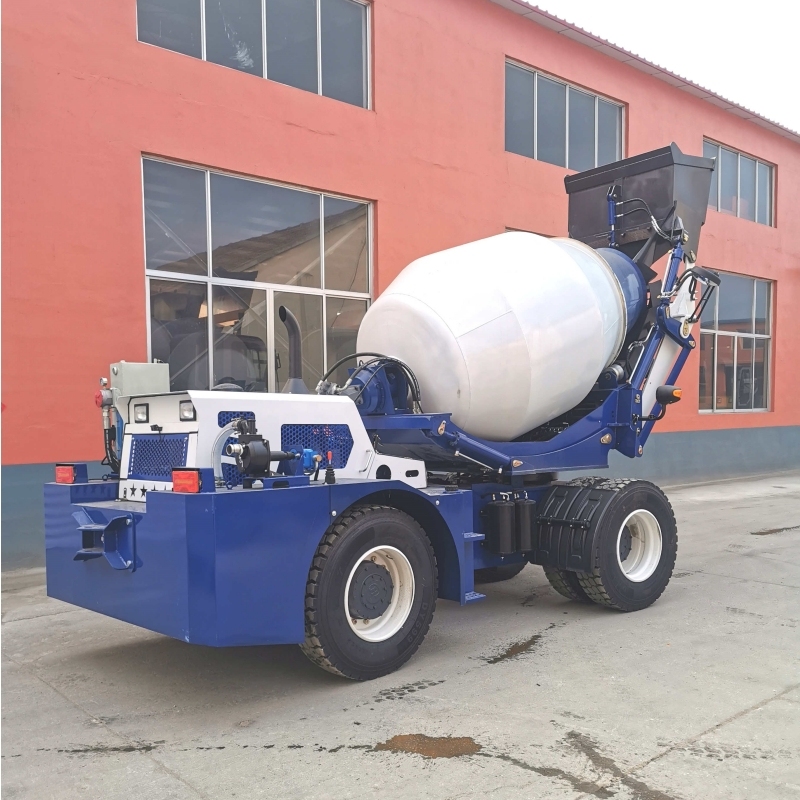

QINGONG 3.5 Cubic meters Self-loading Concrete Mixer Truck
Output per lot: 3.5 M3
Drum rotation: the height of the discharge is 1.8m, the cab, and the tank rotate horizontally by 270 ° (90 ° left and 180 ° right), and the tank can be lifted and lowered
Capacity: Up to 4.5 batches per hour, 15.5 M3/hour
ENGINE: Yuchai YCD4J22T, diesel, water-cooled, 4 cylinders, 2400 RPM, rated power 85KW
Drive mode: 4-wheel drive
Climb: 40 degrees
Speed: dual altitude, low speed 0-25 kph,
high-speed 0-40kph
Cabin: Widen the luxurious cab, the front window can be opened, anti-roll, with A/C
Hydraulic System: Open type oil, plunger type motor, two gear pumps to participate in the work
Bucket: 0.5 M3, hydraulic gate
Water Supply System: self-priming driven pump, 24V self-timing Centrifugal pump, 24V washing machine
Braking: use a small servo pump to enable dual circuit independent braking, and use a single wheel 4-piston vehicle 16-piston to increase the double brake caliper
Steering: Articulated steering with high-pressure bearing
Tire: 12R-22.5, tubeless tire
Power System: 24V
Water tank: 1 X 700 L water tank,
Diesel fuel tank: 130L Hydraulic fuel tank: 130L
Weight: 8,500 kg
Overall dimensions: 7100mm * 2750mm * 3300mm
Wheelbase/Wheel tread: 2903mm / 2100mm
