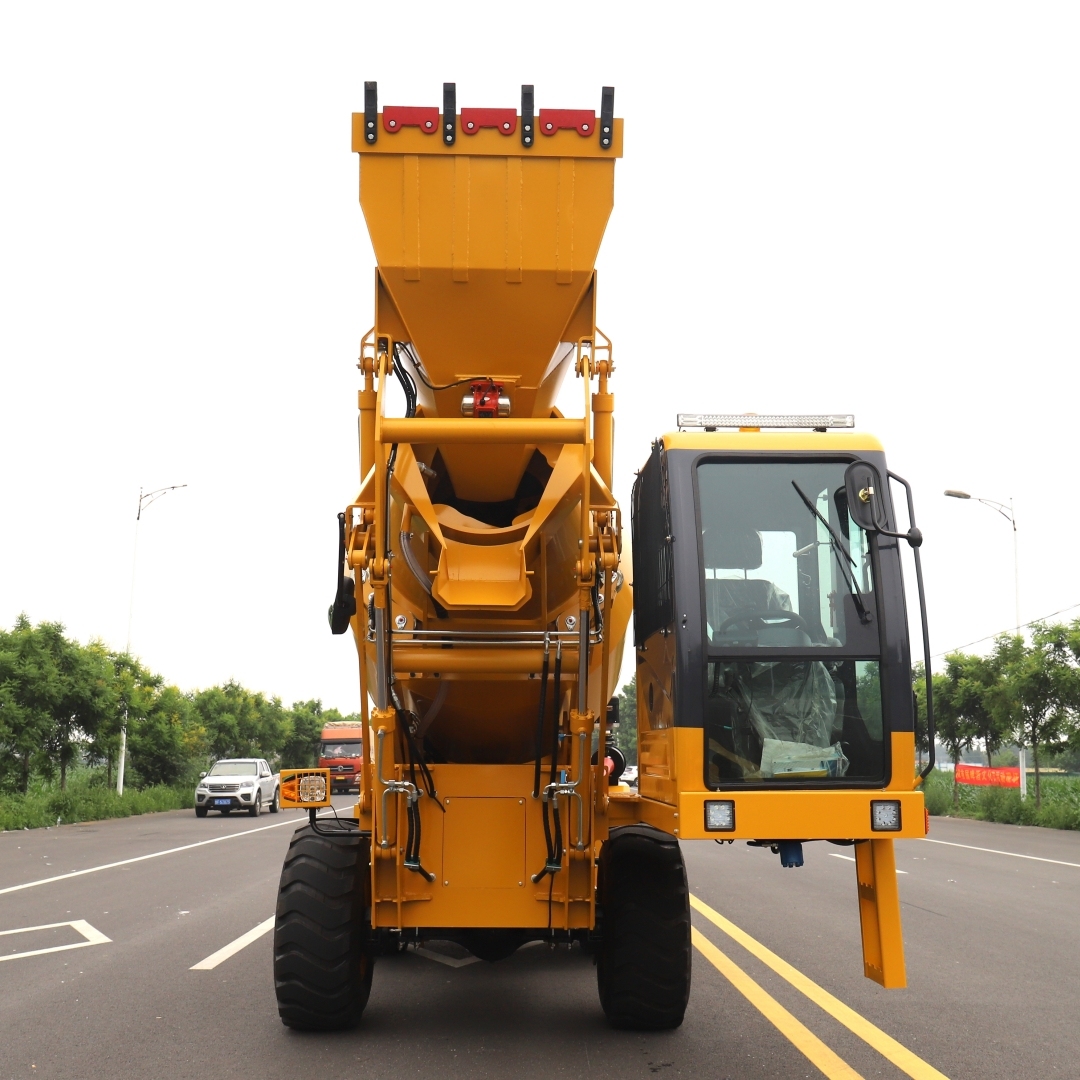

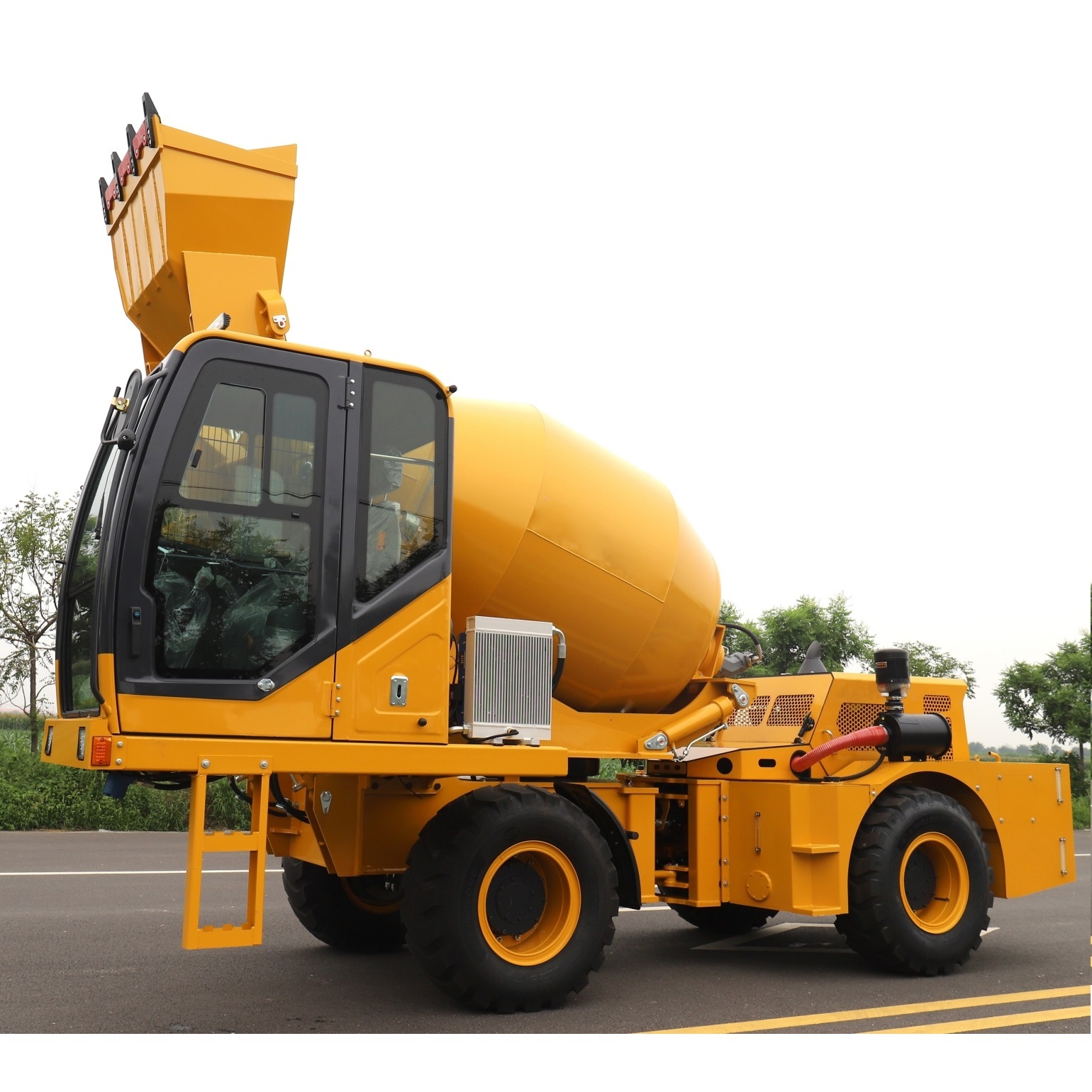

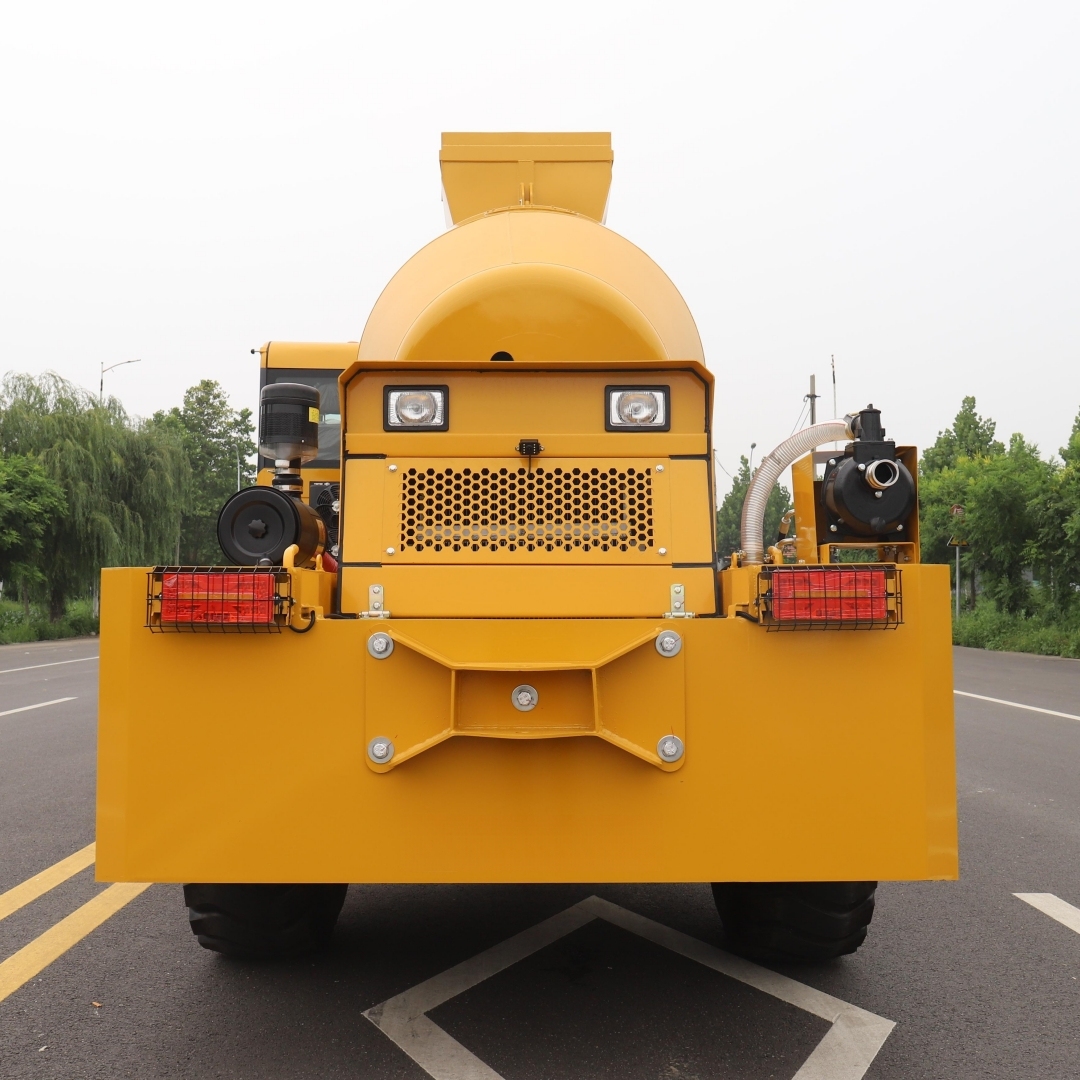

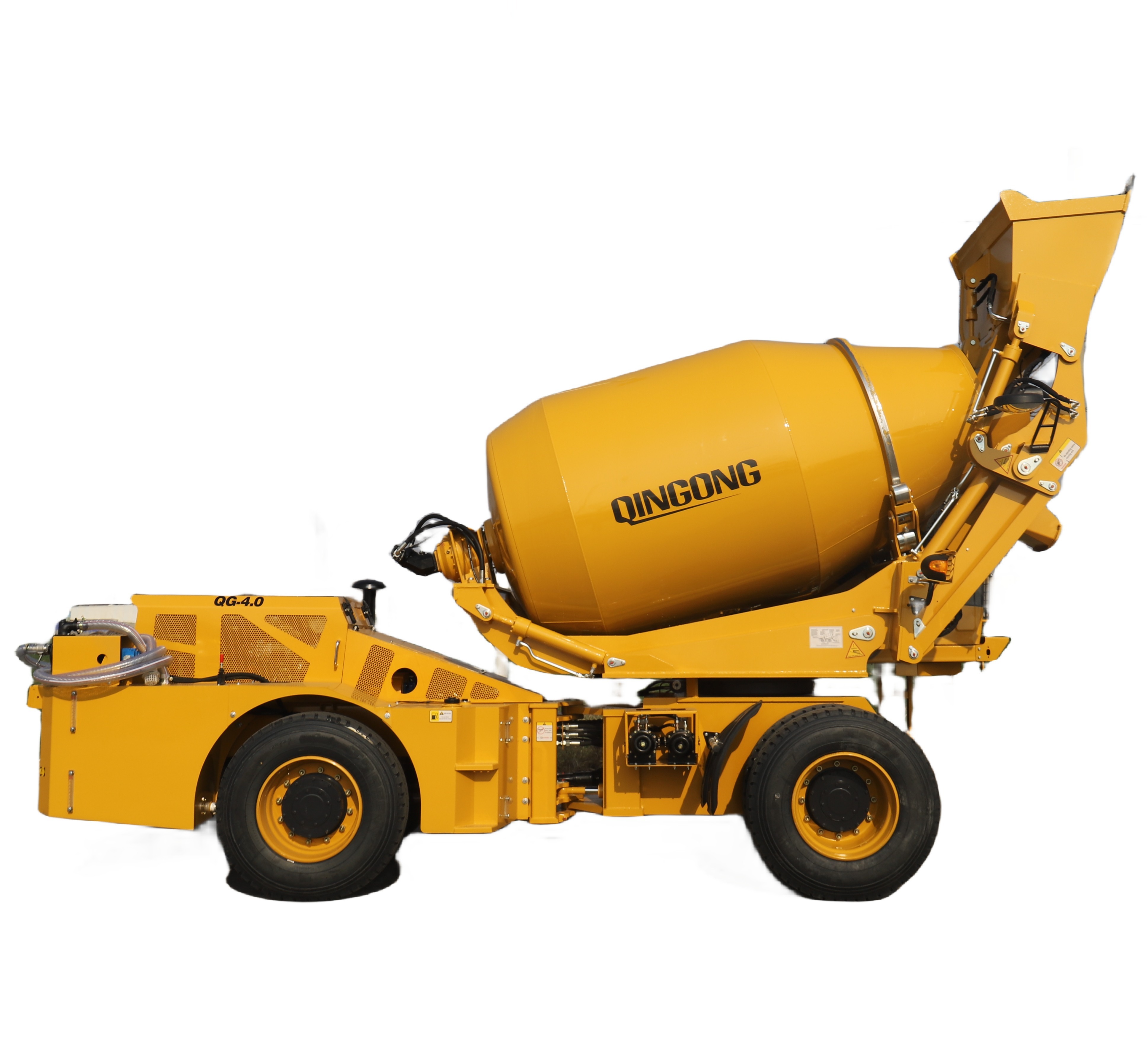

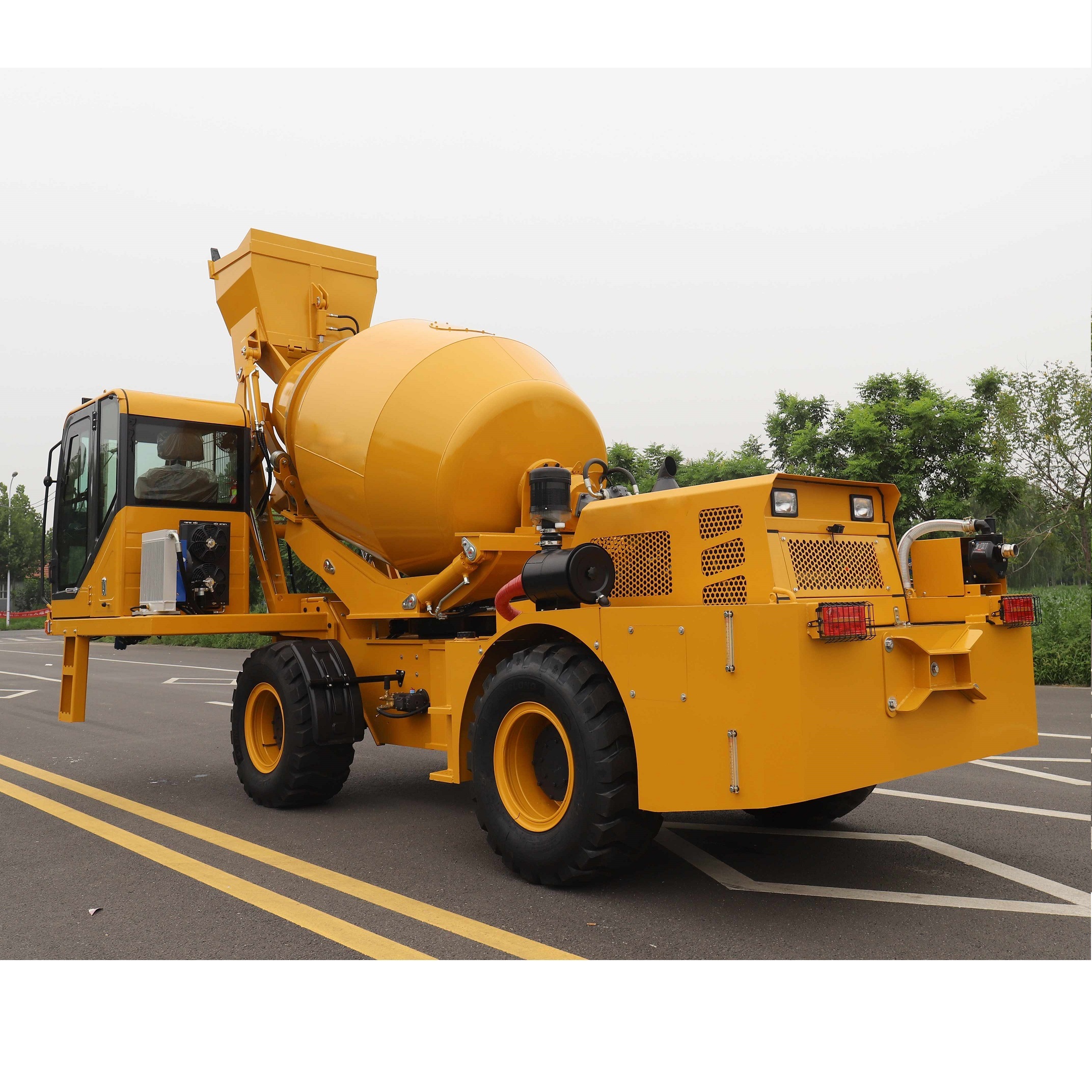

QINGONG 4 Cubic meters Self-loading Concrete Mixer Truck
articulated type
Output per lot: 4.0 cubic meters
Tank rotation: discharge port height 2.2 meters, tank horizontal rotation 270 tank can be raised and lowered
Capacity: Up to 5 batches per hour, 21 cubic hours
ENGINE: Yuchai power ycd4p22t 130, diesel, water-cooled, 4 cylinders, 2400 RPM, rated power 95KW
Drive mode: The engine is directly connected to the 315 torque converter through the drive shaft to the transmission with dual high and low speed through the drive shaft to the front and rear axles to achieve 4-wheel drive
Gradient: 45 degrees
Speed: dual altitude, low speed 0-25 km/h, high speed 0-50 km/h
Driver's seat: Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat
Hydraulic System: closed oil, axial piston motor, three gear pump to participate in the work, tank adjustable speed
JOYSTICK: Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank
Bucket: 0.7 cubic, hydraulic gate
Clay Groove: equipped with two 150CM Removable Chute to increase the length of discharge
Water Supply System: self-priming driven pump, 24V self-timing Centrifugal pump, hydraulic high-pressure car washing machine
BRAKES: internal hub brakes and emergency brakes on 4 wheels, activated by a small Servo pump on a separate two-loop, negative-pressure parking brake, front and rear axles equipped with internal wheels
Steering: assisted by a hydraulic power steering system on two steering wheels
TIRE: 12R-22.5 steel wire high pressure vacuum tire
Power System: 24V
Fuel tank / Water tank: 2 * 380 Litres Water tank, diesel fuel tank 200 litres, hydraulic fuel tank 200 litres
Weight: 10300KG
Overall dimensions :7500mm * 2850mm * 3500mm
wheelbase / Wheelbase: 2590mm / 2200mm
Turning radius: 5860 mm
Others: Q345 manganese steel frame, luxury cab, driving image, cement bucket, air conditioning
