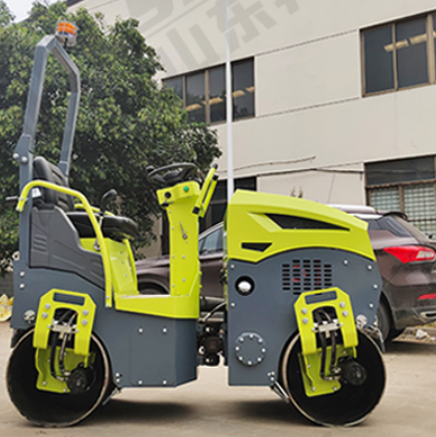

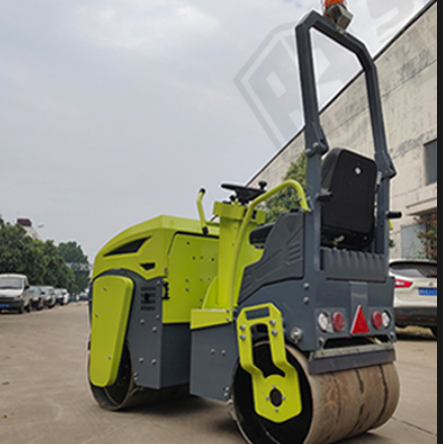

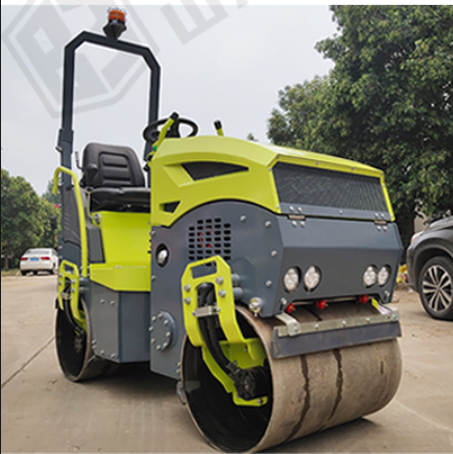

| Item No./Details | BM1200 new model | |
| ENGINE | ||
| Engine | BRIGGS&STRATTON 25T2 | CHANGCHAI 192F |
| Engine type | Single cylinder, OHV, air-cooled, four-stroke, gasoline | Single cylinder, vertical, air-cooled, four-stroke, diesel |
| Number of cylinders | 1 | |
| Output power (KW) | 9.7 | 8.1 |
| Rating speed(RPM) | 3600 | |
| Fuel consupmtion(G/KWH) | 313 | 320 |
| Lubricating oil volume(L) | 1.1 | 1.65 |
| DRIVING | ||
| Electrical equipment(V) | 12 | |
| Drive mode | Variable plunge pump, stepless speed change, double-wheel series, parallel motor | |
| Walking speed (KM/H) | 0--5 | |
| Theoretical climbing ability(%) | 30/35(vibration on/off) | |
| STEERING | ||
| Swing angle(°） | 28 | |
| Steering mode | Hydraulic cylinder, articulated steering | |
| Steering system | Swing articulated | |
| EXCITING SYSTEM | ||
| Vibration wheel | Front | |
| Drive form | Hydraulic Motors | |
| Vibration frequency (HZ) | 65 | |
| Vibration amplitude (MM) | 0.5 | |
| Exciting force(KN) | 22 | |
| SPRINKLING SYSTEM | ||
| Water spray form | Intermittent pressure water spray | |
| CAPACITY | ||
| Hydraulic oil capacity(L) | 22 | |
| Fuel capacity(L) | 6.5 | 5.5 |
| Water tank capacity (L) | 65 | |
| SIZE | ||
| Working width(MM) | 930 | |
| Overall length(MM) | 1980 | |
| Machine height(MM) | 1540 | |
| Turning radius(outer)(MM) | 3165 | |
| Ground clearance(MM) | 245 | |
| Wheel track(MM) | 1356 | |
| Drum size | 560*800mm*2 | |
| Drum thickness(MM) | 12 | |
| WEIGHT | ||
| Weight(KG) | 1200 | |
| Static load(N/CM) | 69.5/68 | |
