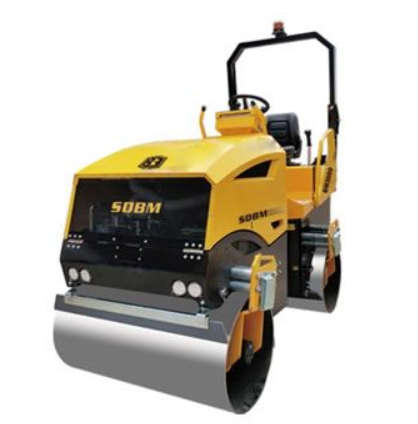

| ITEM NO/DETAILS | BM3000 | |
| ENGINE | ||
| Engine | Changchai ZN390B | |
| Engine type | Three cylinder, Vertical, water-cooled, four-stroke, diesel | |
| Number of cylinders | 3 | |
| Output power (KW) | 28.5 | |
| Rating speed(RPM) | 2600 | |
| Fuel consupmtion(G/KWH) | 240 | |
| Lubricating oil volume(L) | 5 | |
| DRIVING | ||
| Electrical equipment(V) | 12 | |
| Drive mode | Variabledisplacement pump, stepless speed change, two wheels drive,motor parallel | |
| Walking speed (KM/H) | 0-10 | |
| Theoretical climbing ability(%) | 30/40(vibration on/off) | |
| STEERING | ||
| Swing angle(°） | 30 | |
| Steering mode | Hydraulic cylinder, articulated steering | |
| Steering system | Swing articulated | |
| EXCITING SYSTEM | ||
| Vibration wheel | Front/ Rear/ Double | |
| Drive form | Hydraulic Motors | |
| Vibration frequency (HZ) | 60 | |
| Vibration amplitude (MM) | 0.5 | |
| Exciting force(KN) | 35 | |
| SPRINKLING SYSTEM | ||
| Water spray form | Intermittent pressure water spray | |
| CAPACITY | ||
| Hydraulic oil capacity(L) | 42 | |
| Fuel capacity(L) | 42 | |
| Water tank capacity (L) | 140 | |
| SIZE | ||
| Working width(MM) | 1370 | |
| Overall length(MM) | 2480 | |
| Machine height(MM) | 2670 | |
| Turning radius(outer)(MM) | 4130 | |
| Ground clearance(MM) | 385 | |
| Wheel track(MM) | 1720 | |
| Drum size | 720*1200mm*2 | |
| Drum thickness(MM) | 16 | |
| Wheel offset(MM) | 50 | |
| WEIGHT | ||
| Weight(KG) | 3000 | |
| Static load(N/CM) | 135/125 | |
