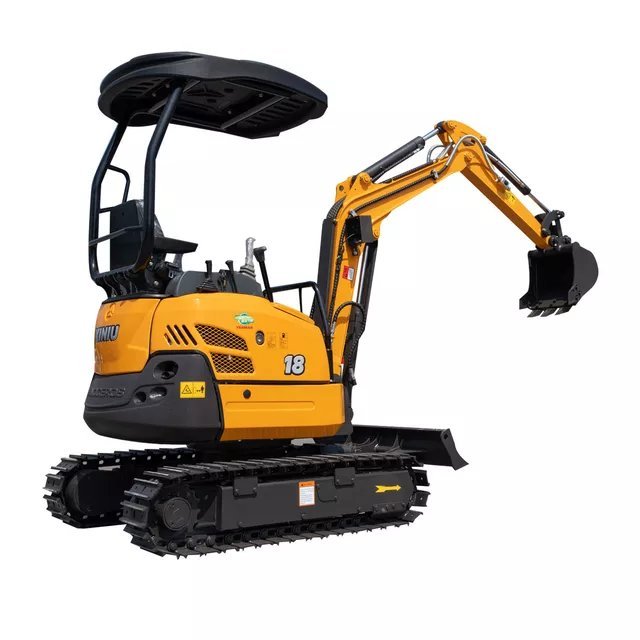

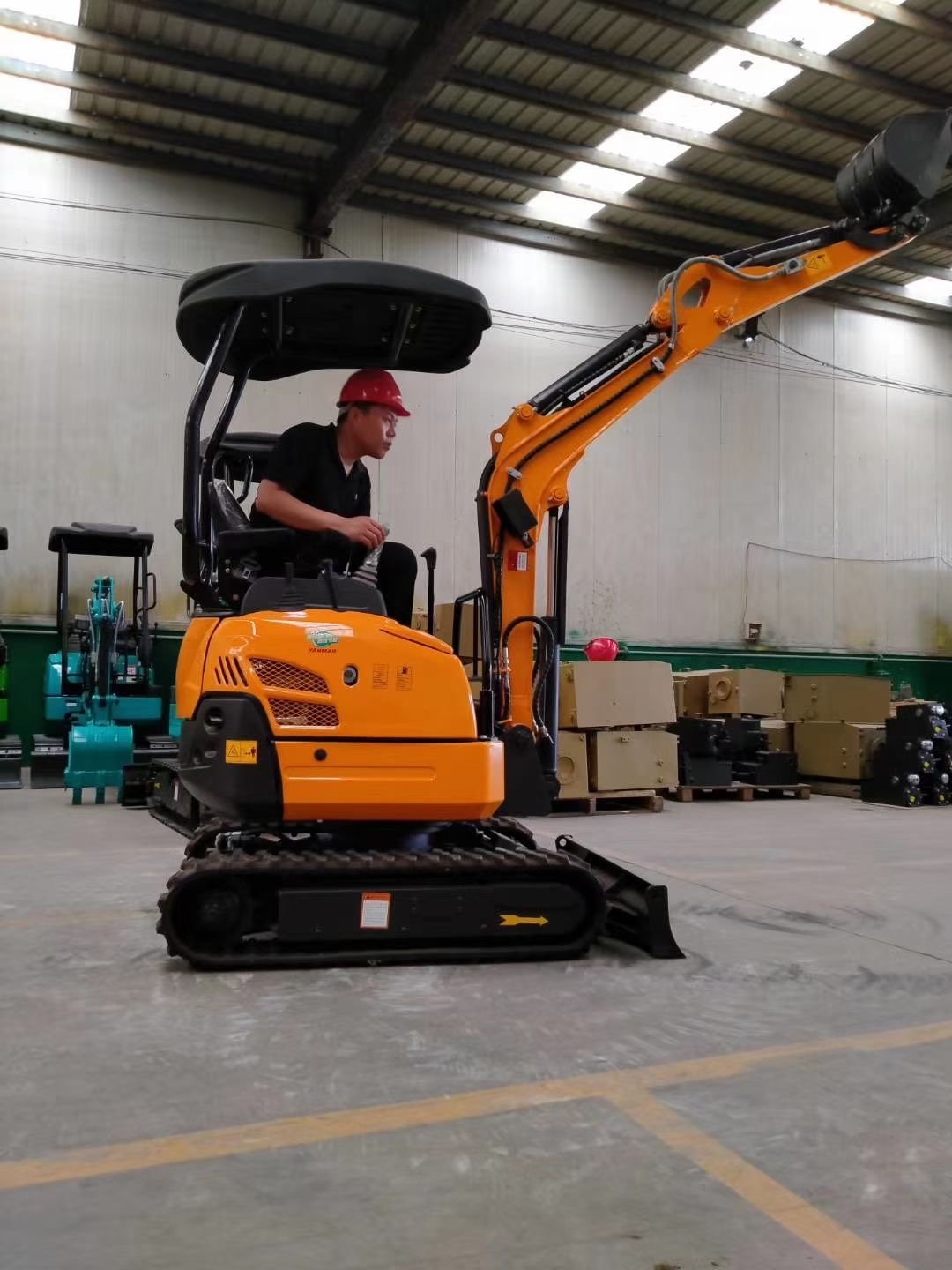

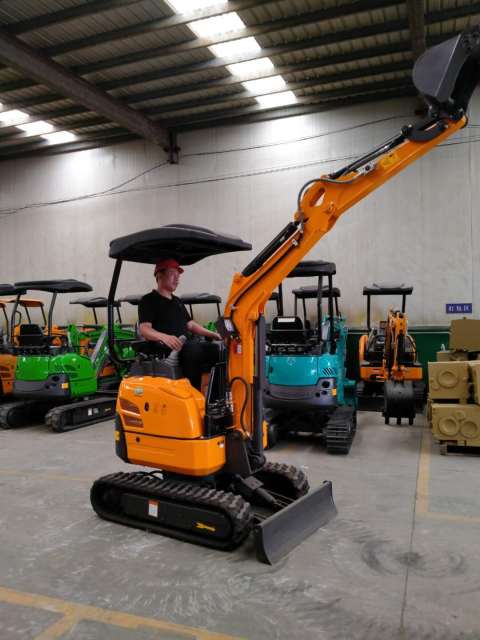

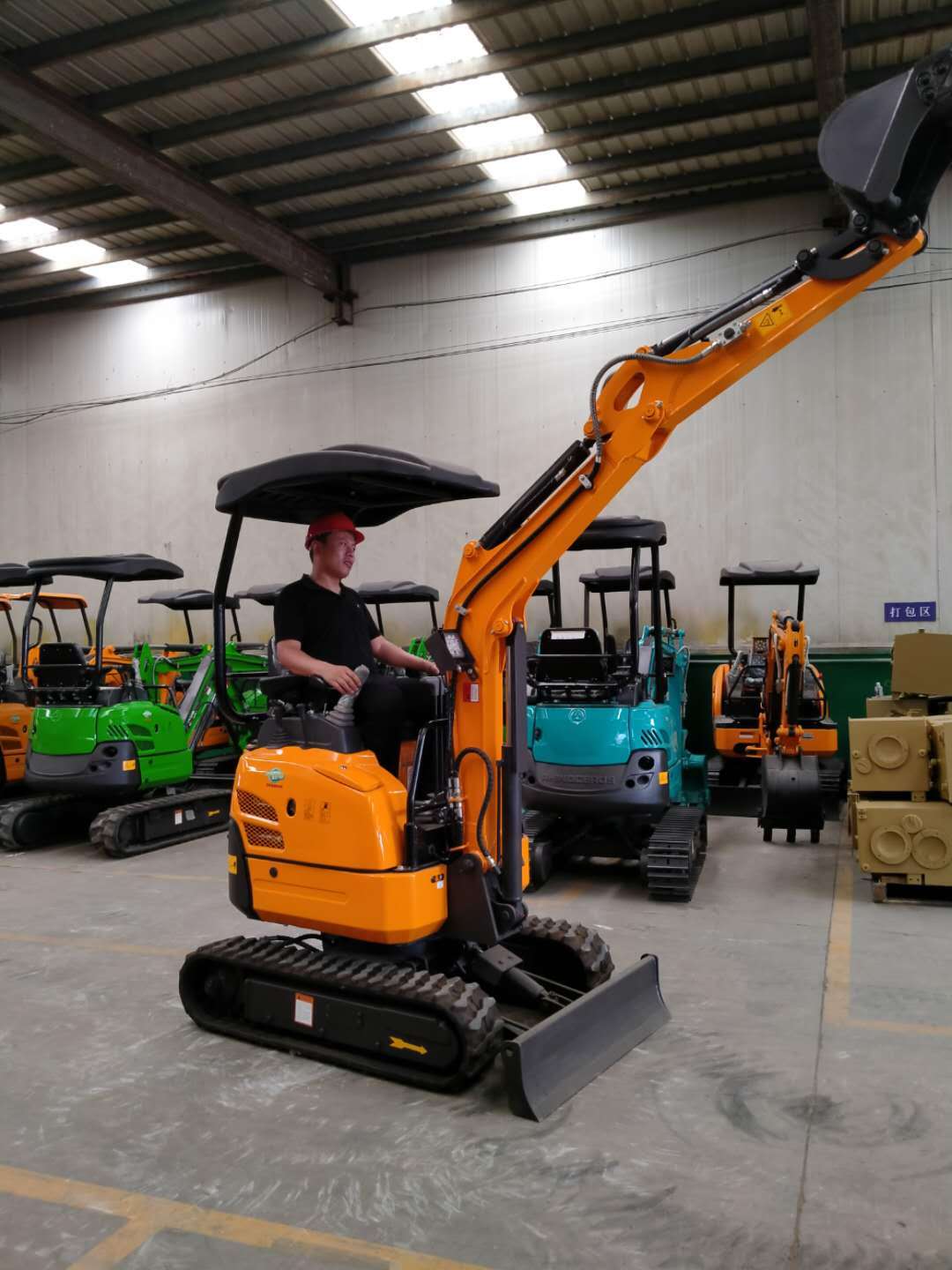

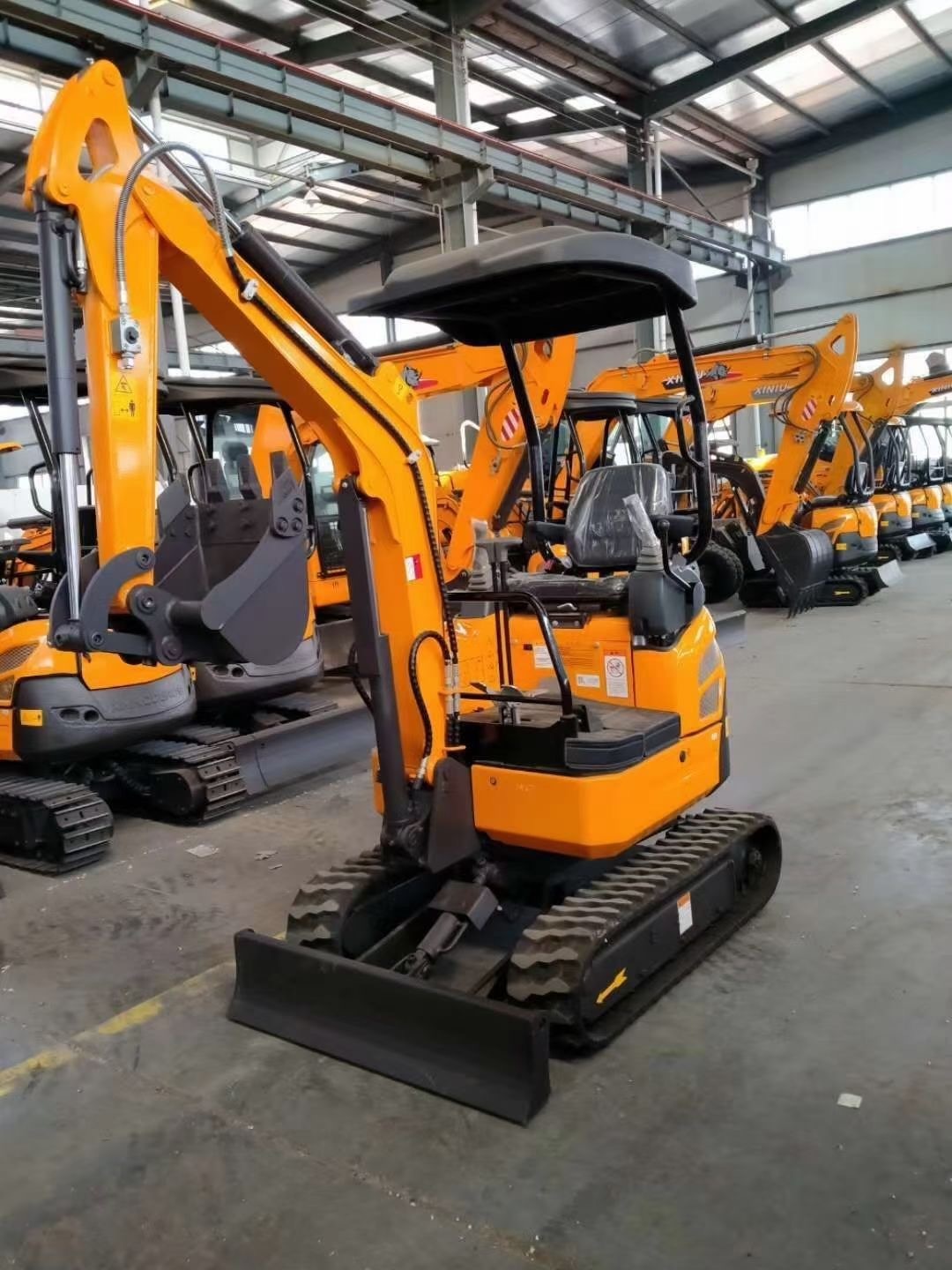

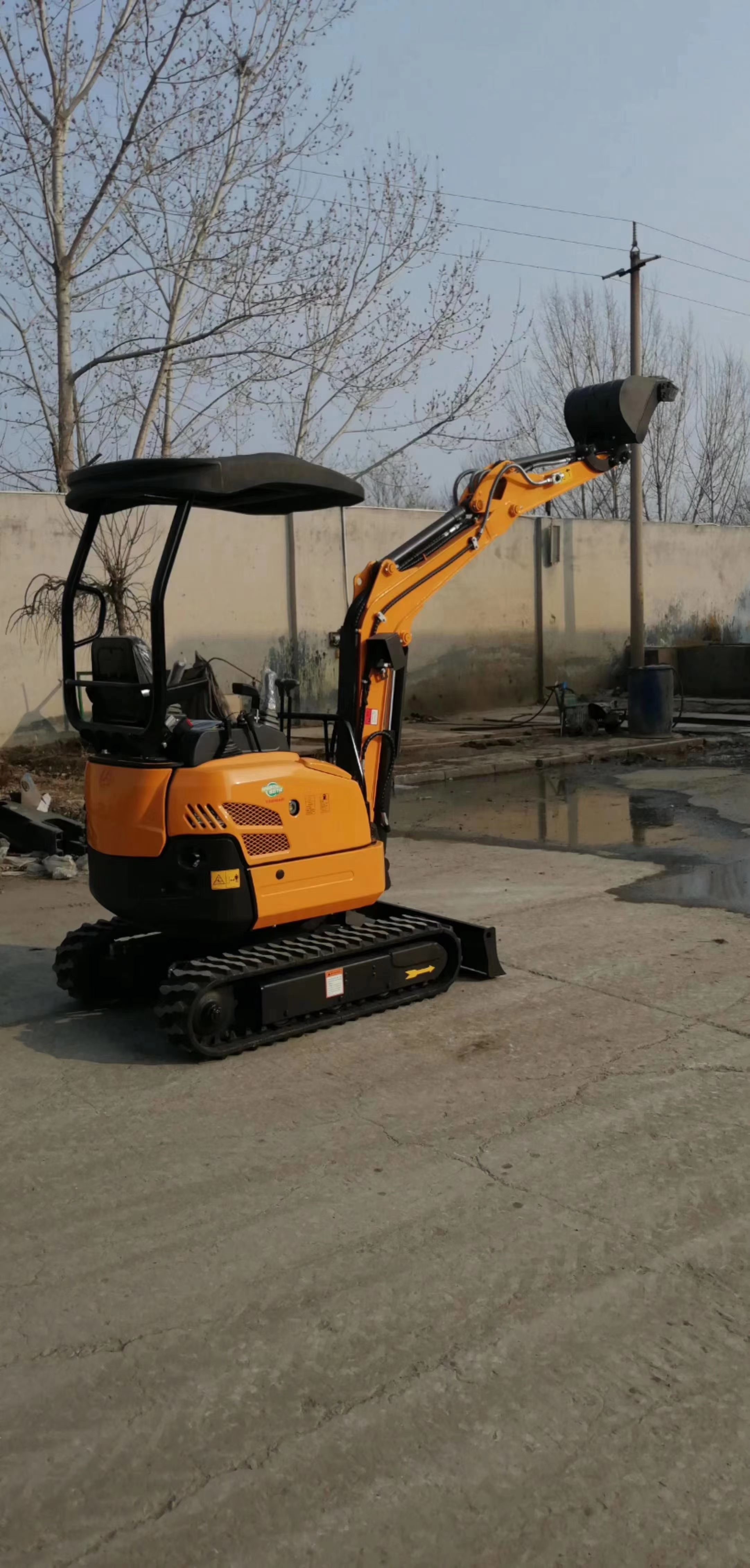

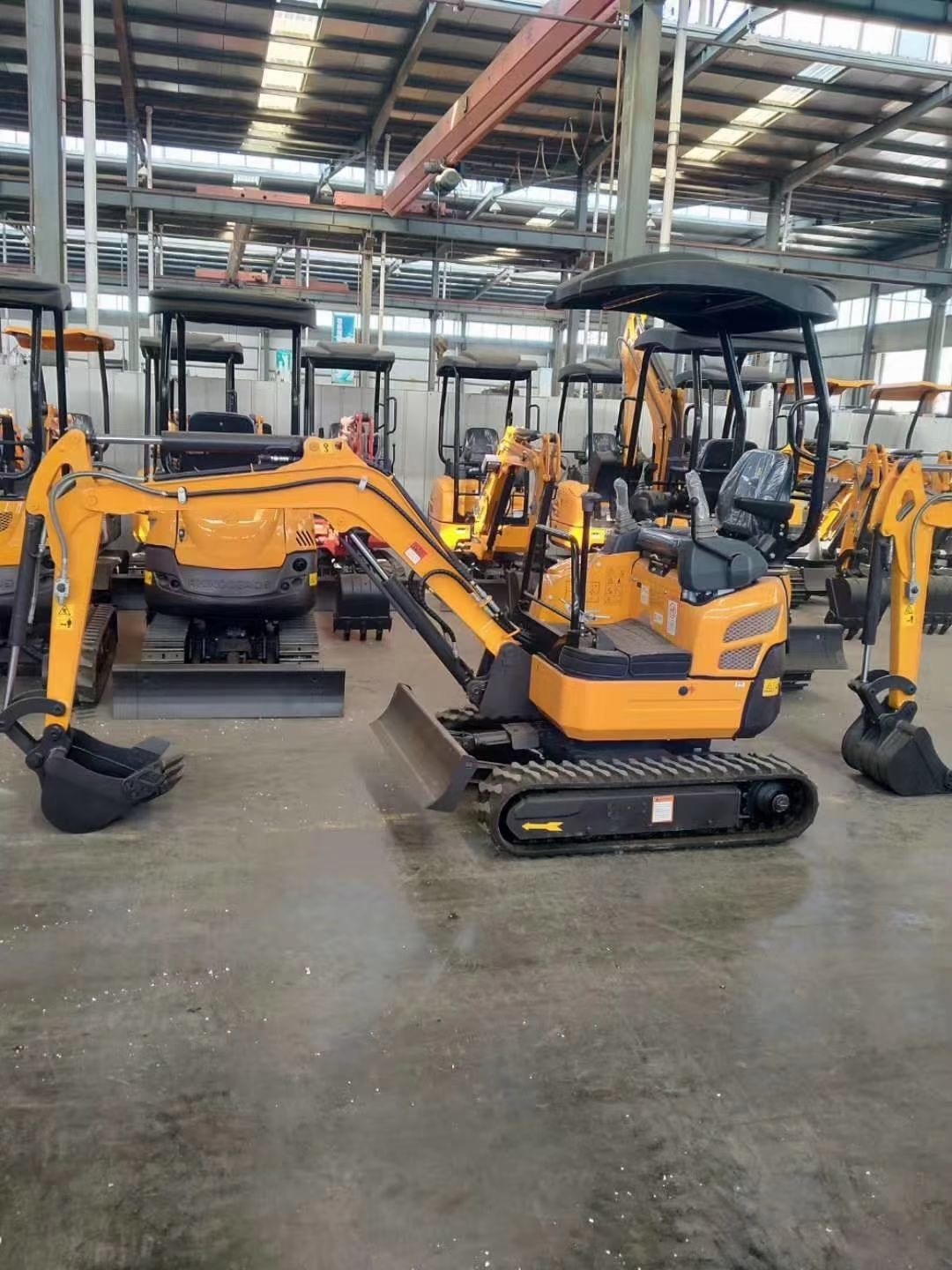

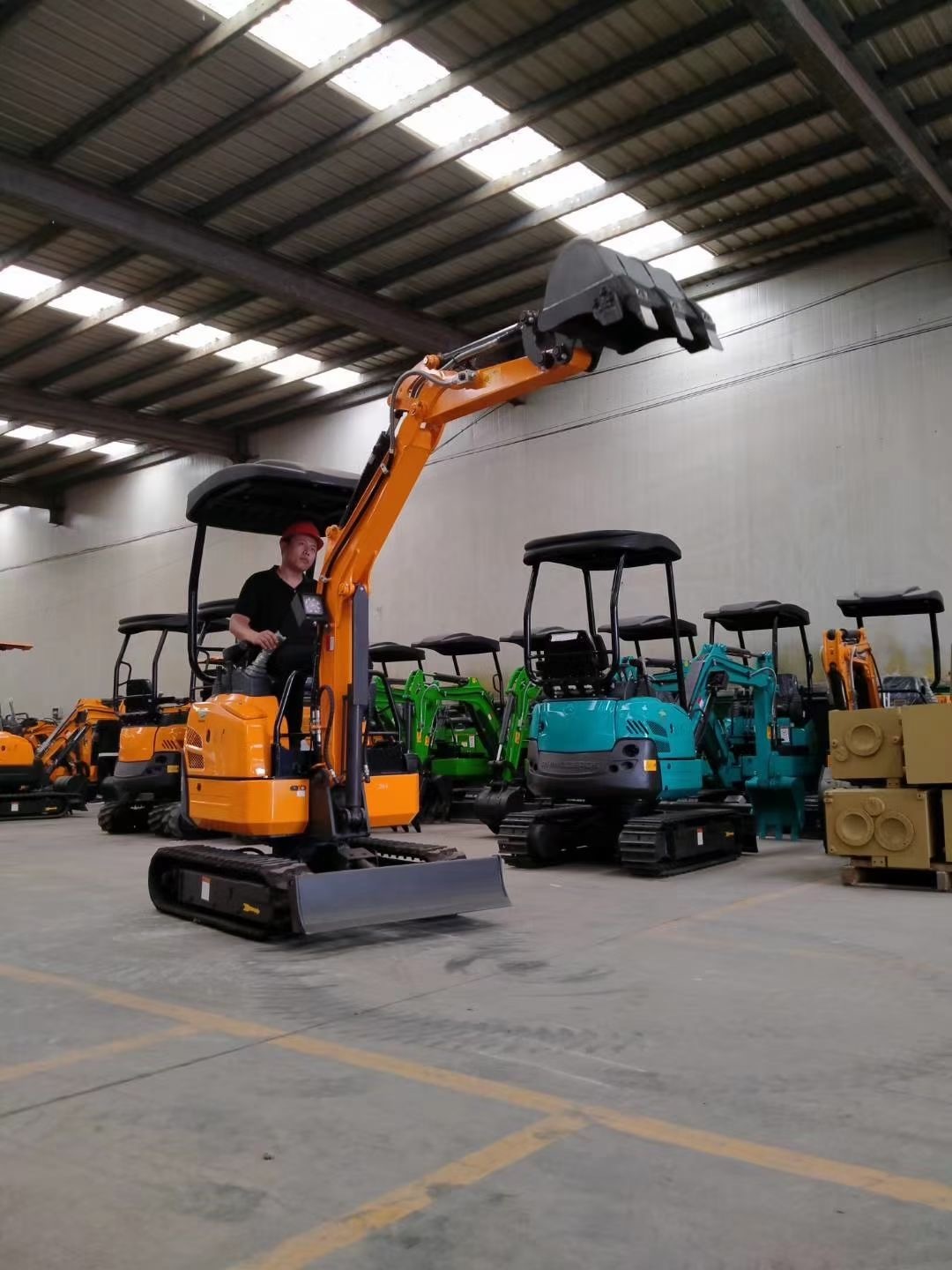

Model |
XN18 |
|
Operating Weight |
1800kg |
|
Digging bucket capacity |
0.045cbm/400kg |
|
Digging bucket width |
420mm |
|
Engine |
Yanmar (3TNV70-S) |
|
Rated power |
10.3kw/2200/r/min |
|
Displacement |
0.854L |
|
Bore stroke |
three cylinder, water cool |
|
Main pump |
TAIFENG |
|
Pump flow |
39.6L/Min |
|
Hydraulic oil tank capacity |
15.3L |
|
Engine oil tank capacity |
2.8(1.3)L |
|
Diesel tank capacity |
19 L |
|
Working pressure |
22MPa |
|
Valve |
TAIFENG |
|
Displacement |
6.8ml/r |
|
Swing motor |
USA EATON |
|
Traveling motor |
SOUTH KOREA DONGHYUAN |
|
MAIN DEMENSIONS |
|
|
Overall dimension( LxWxH) |
3160x1040x2377mm |
|
Total length of track on land |
1670mm |
|
Platform ground clearance |
460 mm |
|
Platform back turning radius |
740 mm |
|
Chassis width |
10400 mm |
|
Track width |
230mm |
|
Chassis ground clearance |
460 mm |
|
Bucket digging force |
10.5kn |
|
Arm digging force |
6.5kn |
|
Track height |
320 mm |
|
OPERATING RANGE |
|
|
Max. Digging depth |
2150 mm |
|
Max. Vertical digging depth |
1740 mm |
|
Max. Digging height |
3275 mm |
|
Max. Dumping height |
2310 mm |
|
Max. Digging radius on ground |
3470 mm |
|
Min. Rotation radius |
1440 mm |
