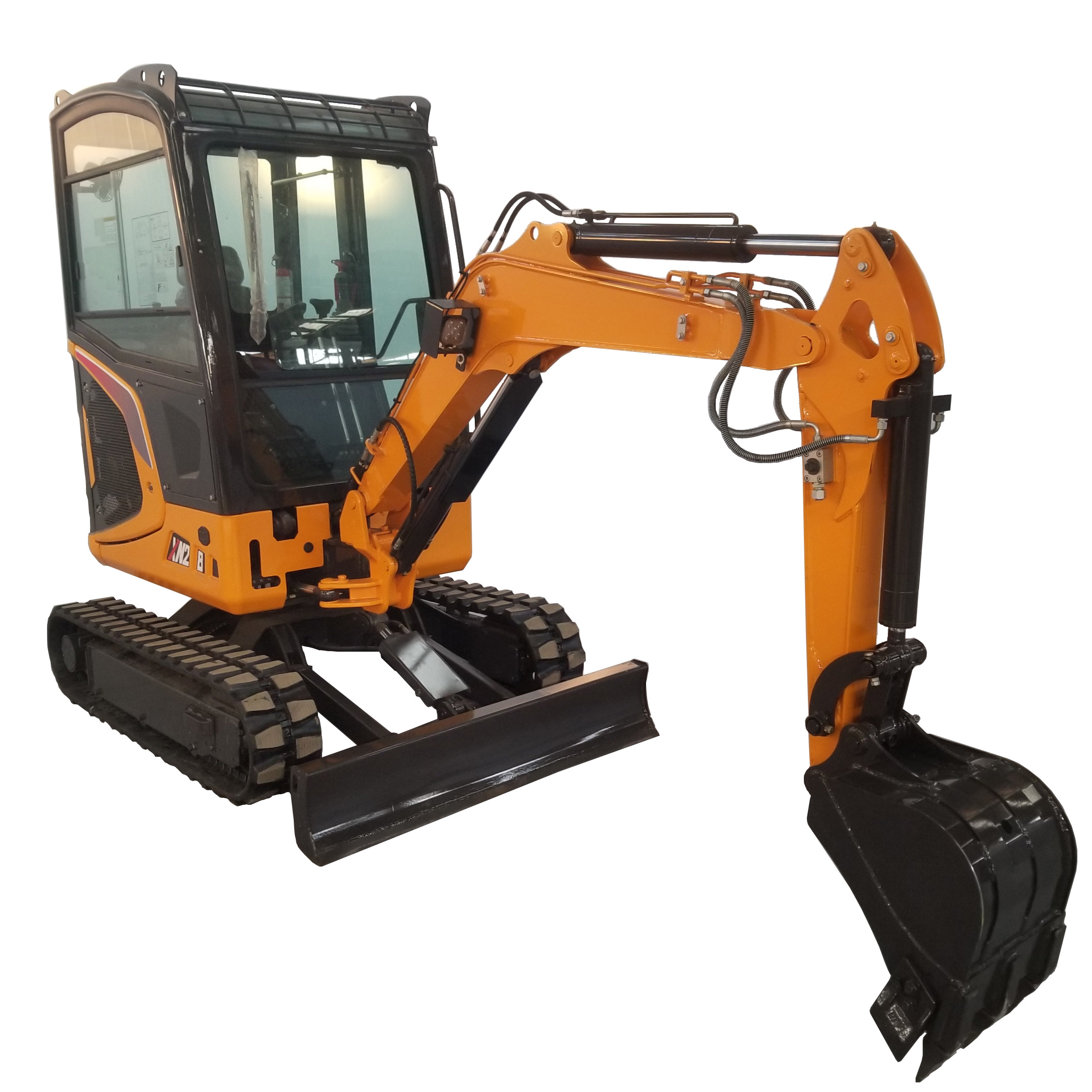

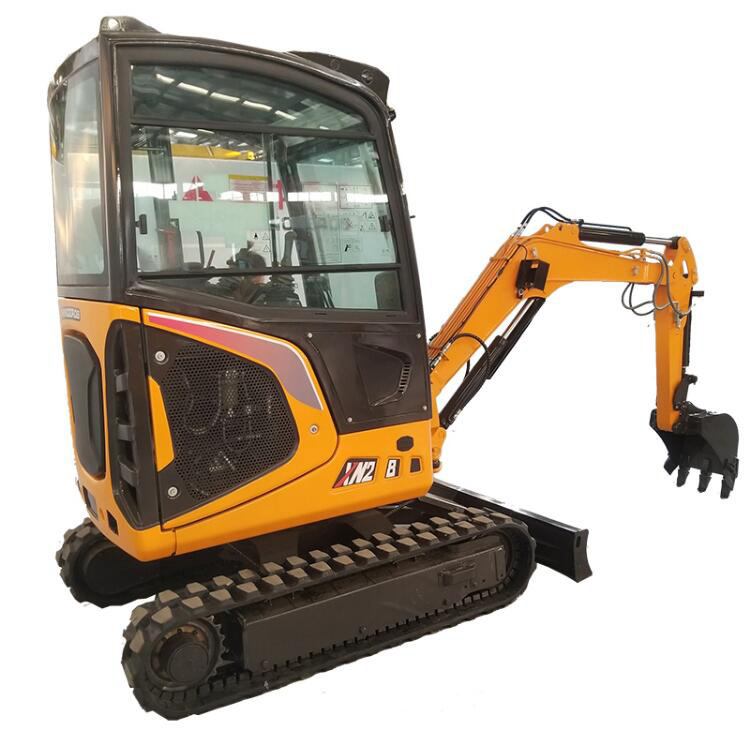

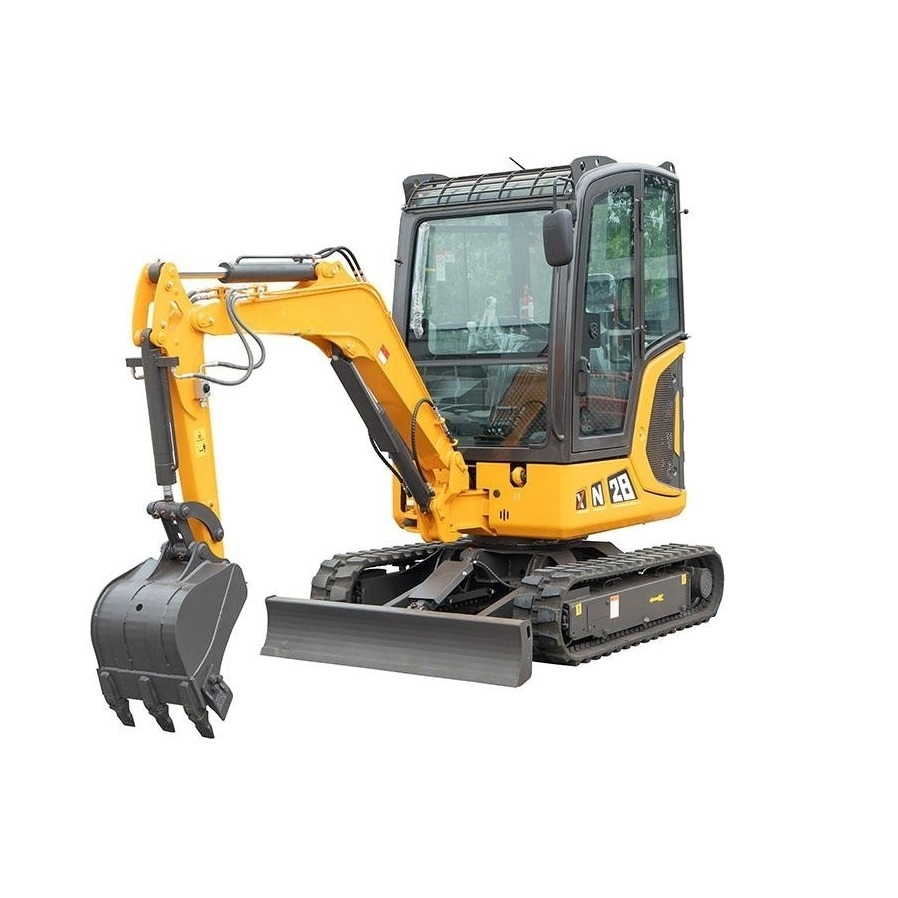

Model |
XN28 |
|
Machine Weight |
2640kg |
|

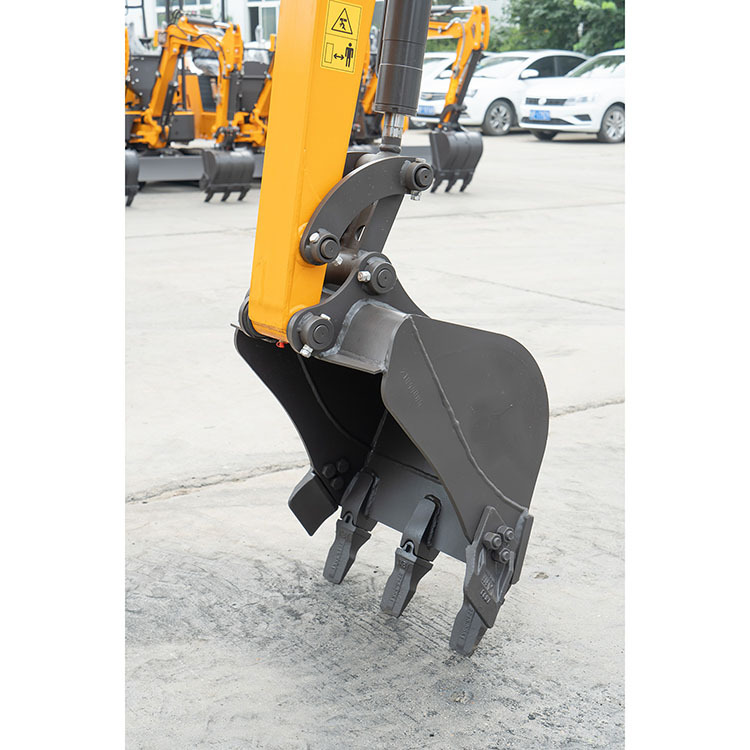

Bucket capacity |
0.05cbm |
|
Bucket width |
558mm |
|
Engine |
Yanmar 3TNV80F-SPSY2 / Kubota D1105 |
|
Rated power |
14.6 kw/2400r/min / 14kw |
|
Displacement |
1.267L |
|
Max. speed |
1.4 / 2.7km/h |
|
Ground pressure |
36Mpa |
|
Swing speed |
9rpm |
|
Max. Grade ability |
30° |
|
Bucket digging force |
16.14KN |
|
Arm digging force |
11.7KN |
|
Maximum traction force |
13KN |
|
Max. Pressure |
22Mpa |
|
Max. Flow rate |
61.6 L/min |
|
Fuel tank capacity |
22L |
|
Hydraulic oil tank |
25.3L |
|
Engine oil tank |
3.4L |
|
MAIN DEMENSIONS |
|
|
Overall dimension( LxWxH) |
3918x1454x2469 mm |
|
Wheelbase |
1440mm |
|
Total length of track |
1892mm |
|
Upper chassis ground clearance |
535mm |
|
Counterweight turning radius |
885mm |
|
Track width |
250 mm |
|
Track height |
455 mm |
|
Height of seat to ground |
1904mm |
|
Boom swing - left |
539mm |
|
Boom swing - right |
477mm |
|
OPERATING RANGE |
|
|
Max. Digging depth |
2396mm |
|
Max. Vertical digging depth |
2093mm |
|
Max. Digging height |
4153mm |
|
Max. Dumping height |
2909mm |
|
Max. Digging radius on ground |
4168mm |
|
Min. Rotation radius |
1857mm |
|

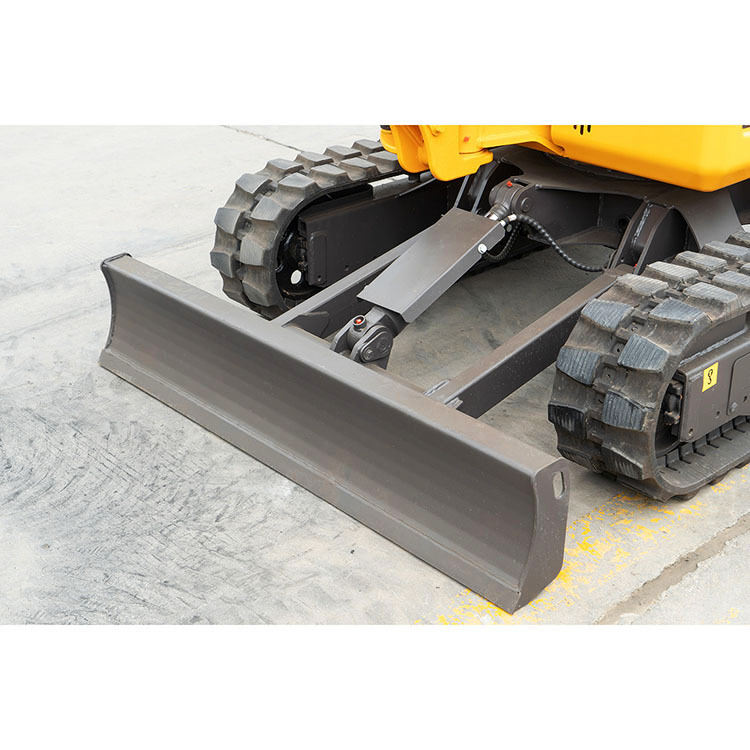

Max. Lifting height of dozer blade |
257mm |
|
Max. Digging depth of bulldozer blade |
413mm |
|
Main configuration of XN28: 1. Japanese Yanmar engine 2. Swing boom 3. Chinese brand piston pump / Valve 4. Eddit swing motor / Korea traveling motor |
|
