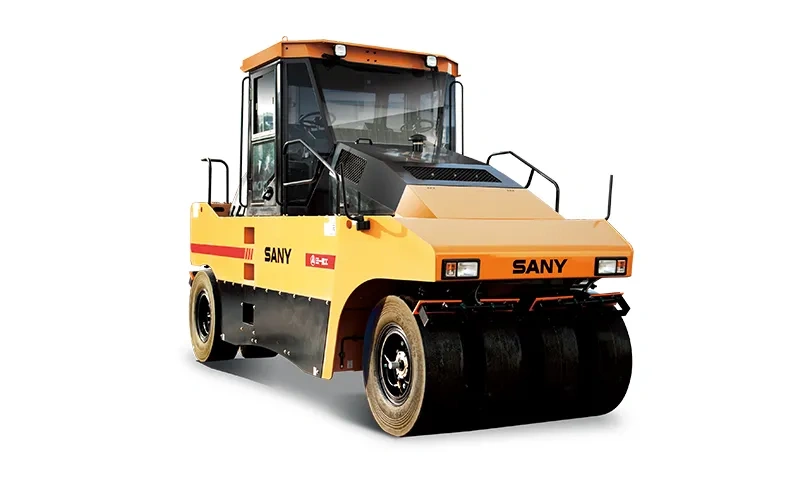

SANY SPR200C-8 Pneumatic Tyre Roller

No. SPR200C-8
Automatic Oil-spraying Technology

· Pneumatic powered automatic oil-spraying prevents asphalt from sticking to the tires.

· Two minute suction refill of oil tank eliminates the manual refilling.

· Eliminates the safety hazard of manually applying oil.

Hydraulic Drive System

· Continuously variable drive system provides smooth starting and stopping.

· Controls are easy to learn and easy to operate.

Automatic Inflation System

· Tire pressure is adjustable from within the cab.

· Even and consistent air pressure ensures compaction quality.

· Air pressure is maintained even when a tire has a slow leak.

Hydraulic Brake System

· Hydraulic braking is engaged upon engine or transmission failure.

· Braking distance is 50% less than similar equipment.

· Transaxle brake is applied when the equipment stops without the need for hand brake.

Exceptional Compaction Performance

· Meeting the demands of compaction for asphalt road and cement stabilized base

  • SANY SPR200C-8 Pneumatic Tyre Roller
  • SANY SPR200C-8 Pneumatic Tyre Roller
  • SANY SPR200C-8 Pneumatic Tyre Roller
  • SANY SPR200C-8 Pneumatic Tyre Roller

SPECIFICATION

Compaction Mechanism
Compaction Width  2085 mm
Ground Pressure  200~480 kPa
Max. Operating Weight  20000 kg
Overlap  36 mm
Single Tire Load  2.5 T

Engine Power  93 kW

Streering Angle  30 °
Wheelbase  3750 mm
Working Speed  0~7.6 km/h
